2i, 2i-N Aerosol Photometer

The 2i (and its 2i‑N variant) is a rugged, portable digital aerosol photometer designed for in‑situ integrity testing of filters in cleanrooms, pharmaceutical manufacturing, biosafety cabinets and even nuclear environments

Key features include a large 4.3″ LCD touchscreen interface (on some models) for intuitive control, user‑settable aerosol noise suppression for stable measurement, USB or optional thermal printer output for reporting in continuous, monitoring or summary modes, and (in the 2i‑N version) a sealed sample train enabling safe use in hazardous environments and compliance with standards such as ASME N511/510/509 and AG‑1

Description

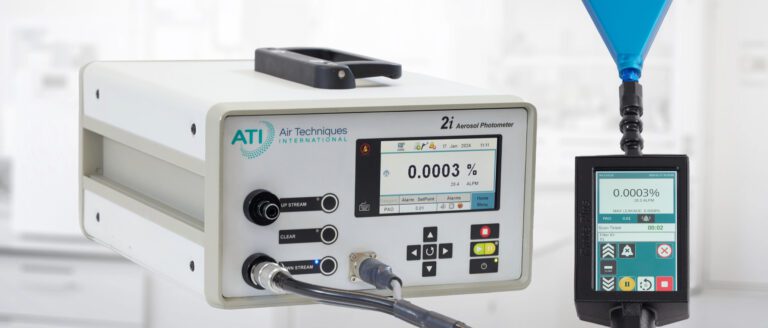

The iProbe Plus provides secure data storage, reporting, and traceability in the palm of your hand. The iProbe Plus is the most advanced, innovative and user-friendly scanning probe available.

Key Features

Key Features Key Benefits
Filter scan report traceability Supports 21 CFR Part 11 compliance
On-board data storage Enhances data integrity and quality control
Easy data transfer via USB Eliminates the need to connect to a computer or printer for real-time data output
Large, 4.3-inch color touchscreen Improves efficiency and saves time
Compatible with existing 2i photometers, no firmware update required (“plug and play”)
Optional password protection
Send leak scan results to a thermal printer1

Quality and Robustness

Standard Test Requirements
IEC 60068-2-27 Drop Dropped 10 times at 1 meter
IEC 60068-2-6 Vibration 1 hr at 10Hz, 100Hz, and 200Hz
IEC 60068-2-14 Temperature Tested at -20°C and +70°C
IEC 60068-2-27 Thermal Shock Unit cycled between -20°C and +70°C



Standards & Compliance
CE
UKCA
RoHS 3
IEC/EN 61326-1:2013 (EMC)
