Description

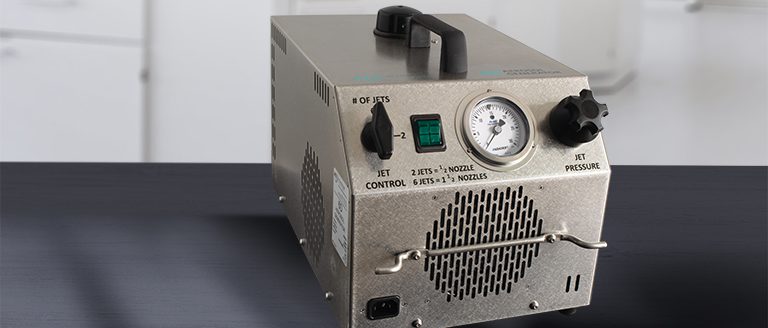

The 6D is a small, light, and rugged portable, self-contained Laskin-Nozzle aerosol generator with integrated compressor. It’s ideal for testing a wide variety of filter systems with air flows up to 2,000 cfm by generating a polydispersed, submicron aerosol. Applications include workstations, negative pressure filtration units, biological safety cabinets, ceiling modules, and more. It can also be used for testing positive pressure systems using an optional Positive Injection Pump (PIP) and hose adapter kit.

Applications

• Independent filter certifiers
• Nuclear facilities
• Pharmaceutical manufacturers
• Medical facilities and cleanrooms
• Biosafety cabinets and fume hoods

Key Features and Benefits

• Integrated compressor, no external air required
• Flex-fuel capable, allows for the use of a variety of reagents
• Integrated pressure gauge guarantees the correct pressure across the nozzle
• Air flow rates from 200 to 2,000 cfm to test a wide variety of filter systems

A Tough, Portable Solution

The 6D is a small, light, and rugged portable, self-contained Laskin-Nozzle aerosol generator. It is ideal for testing a wide variety of filter systems with air flows up to 2,000 cfm by generating a polydispersed, submicron aerosol. Applications include workstations, negative pressure filtration units, biological safety cabinets, ceiling modules, and more.

The 6D can also be used for testing positive pressure systems using an optional positive injection pump (PIP) and hose adapter kit. On-site routine maintenance is easy. Its integrated compressor makes implementation simple – all you need is a power source.

Hose Adapter Connector

Performance Guaranteed

6D aerosol output is regulated with an included calibrated pressure gauge, guaranteeing 20 psi across the nozzle per industry standards. The 6D complies with all applicable electrical and safety requirements and is CE approved.

Easy to Use

Integrated liquid fill sight glass, drain port, and power cord storage make operating, transporting, and storing the 6D simple and easy. An optional hose adapter kit, used to introduce aerosol remotely, connects easily to the standard outlet using the sanitary flange or simple NPT connection.

Optional Heavy-Duty Case

Heavy duty, water-proof transport case with telescoping handle and wheels. Accommodates either a 4B or 6D generator with space for optional hose adapter. (Universal case with 6D generator shown).

Heavy Duty Case

Performance & Product Specifications
Dimension (L x W x H)	37.4 cm x 25.7 cm x 27.6 cm (14.8 in. x 10.1 in. x 10.9 in.)
Weight	15 kg (34 lb)
Aerosol Output	50 – 2,000 cfm
Aerosol Concentration*	100 μg/l @ 200 cfm / 10 μg/l @ 2,000 cfm
Generator Type	2 or 6 Laskin-Nozzle Jets (1/2 or 1-1/2 Nozzles)
Aerosol Type	Polydispersed (cold)
Electrical	120 VAC/60 Hz or 240 VAC/50Hz
Compressed Air	Not required, On-board integrated compress
