Description

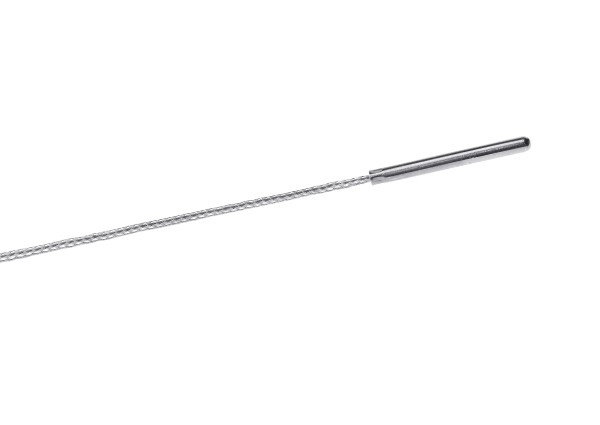

Dry Heat Thermocouple Temperature Sensor DTS
Main features:
● Fast thermal response
● Resistant to high-intensity mechanical shock
● Usable in high-temperature 400℃ activities
● Prevents chip drop from polluting equipment and environment
| model | DTS-10 Quick Response |
| Graduation number: | T-type |
| Wire system: | 2-wire |
| Head operating temperature: | 0℃ to 400℃ |
| Wire operating temperature: | 0℃ to 400℃ |
| Accuracy : | ±0.25℃ |
| Head features: | earthquake resistance |
| Line characteristics: | Resistant to folding |
| Tail features: | NA |
| Wire core: | Copper and Constantan, 7 strands x 32 gauge |
| Head packaging material: | 316L stainless steel |
| Wire insulation material: | polyimide |
| Conductor outer material: | 304 stainless steel |
| Head size (diameter x length): | Φ2.8×25mm |
| Wire size (width x height): | 2.2×1.5mm |
| Tail terminal: | Crimp terminals |
| Tail terminal size (width x length): | 1.3×8mm |
| Total length: | 10m |
| Wire Origin: | China |
| Notice: | Please keep the tail environment temperature stable, because the thermocouple requires cold end compensation. The temperature change of the cold end (tail) environment will affect the accuracy. Please consult the sales engineer for details. |
| Ordering Information: | DTS-6 6m
DTS-8 8m DTS-10 10m DTS-12 12m DTS-15 15m DTS-20 20m DTS-25 25m |
