Description

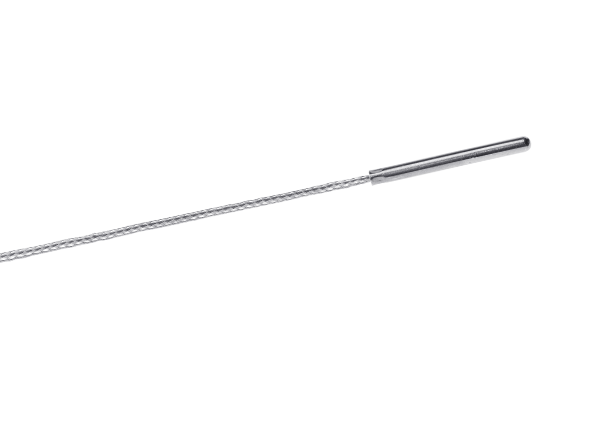

Dry Heat Resistance Temperature Sensor DRS
Main features
: High accuracy Good long-term stability, can calibrate and verify multiple devices at one time, saving a lot of working time and cost Resistant to high-intensity mechanical shocks High temperature 400℃ active use Prevents chips from contaminating equipment and the environment
| model | DRS-10 high precision general purpose |
| Graduation number: | PT100 |
| Wire system: | 3 lines |
| Head operating temperature: | 0℃ to 400℃ |
| Wire operating temperature: | 0℃ to 400℃ |
| Accuracy : | ±0.1℃ |
| Head features: | earthquake resistance |
| Conductor characteristics: | Resistant to folding |
| Tail features: | none |
| Head packaging material: | 316L stainless steel |
| Wire insulation material: | polyimide |
| Conductor outer material: | 304 stainless steel |
| Head size (diameter x length): | Φ3.5×35mm |
| Wire diameter: | Φ2.5mm |
| Tail terminal: | Crimp terminals |
| Tail terminal size (width x length): | 1.3×8mm |
| Total length: | 10m |
| Origin of temperature sensing element: | Germany |
| Wire Origin: | China |
| Notice: | Do not use in water |
| Ordering Information: | DRS-6 6m
DRS-8 8m DRS-10 10m DRS-12 12m DRS-15 15m DRS-20 20m DRS-25 25m |
