Description

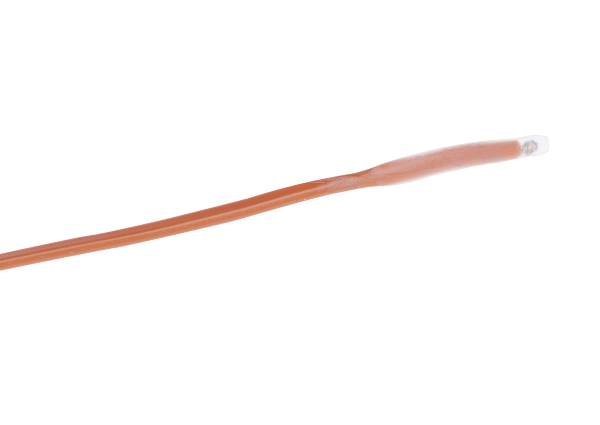

Wet Heat Thermocouple Temperature Sensor WTS
Main features:
● Fast thermal response
● Unique TTP full Teflon protection technology, super waterproof and vibration-resistant, and resistant to high temperatures.
| model | WTS-10 Quick Response Type |
| Graduation number: | T-type |
| Wire system: | 2-wire |
| Head operating temperature: | -200℃ to 200℃ |
| Wire operating temperature: | -200℃ to 200℃ |
| Accuracy : | ±0.25℃ |
| Head features: | Waterproof and shockproof |
| Line characteristics: | Waterproof, fold-resistant |
| Tail features: | Anti-pressure water diversion |
| Wire core: | Copper and Constantan, 7 strands x 32 gauge |
| Head packaging technology: | TTP full Teflon protection |
| Wire insulation material: | Teflon |
| Conductor outer material: | Teflon |
| Head size (diameter x length): | Φ3×20mm |
| Wire size (width x height): | 2.3×1.4mm |
| Tail terminal: | Crimp terminals |
| Tail terminal size (width x length): | 1.3×8mm |
| Total length: | 10m |
| Wire Origin: | USA |
| Notice: | Please keep the tail environment temperature stable, because the thermocouple requires cold end compensation, and the temperature change of the cold end (tail) environment will affect the accuracy. Please consult the sales engineer for details. |
| Ordering Information: | WTS-6 6m
WTS-8 8m WTS-10 10m WTS-12 12m WTS-15 15m WTS-20 20m WTS-25 25m |
