Description

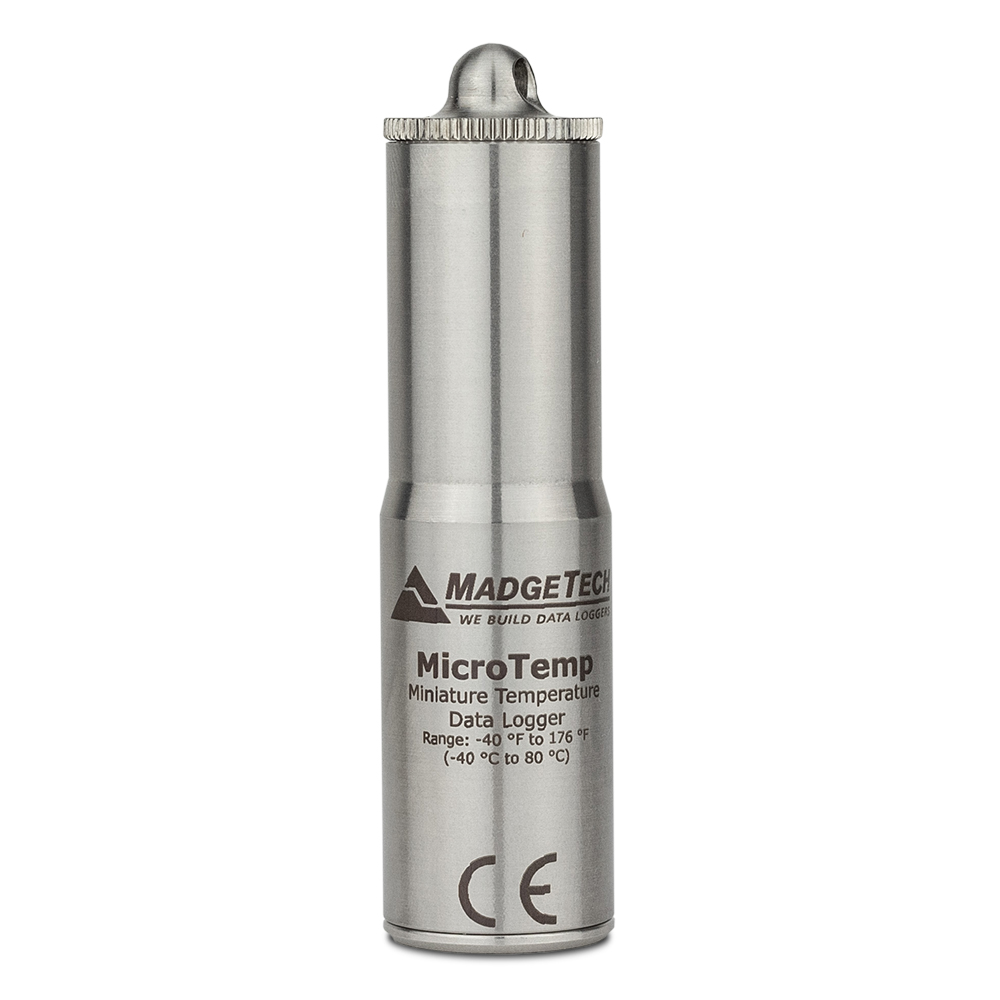

The MicroTemp is a miniature, temperature data logger. Includes ISO17025 accredited calibration certificate.
Key Features:
- 2.6 Inches Tall
- Submersible up to 230 Feet
- Programmable High/Low Alarms
The MicroTemp is a miniature, temperature data logger that’s fully submersible up to 230 ft. (70 m). Only 2.6 in (66 mm) tall and 0.7 in (18 mm) in diameter, this data logger can easily fit into the smallest spaces.
Don’t let its tiny size fool you, the MicroTemp measures and records temperatures from –40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The MicroTemp has a storage capacity of 32,767 readings and is equipped with programmable high/low alarms that alert when user-specified temperature limits are exceeded.
The MicroTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Specifications
General
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Alarm | Yes |
| Baud Rate | 38,400 |
| LED Indicators | 1 Status & 1 Alarm LED |
| Battery Life | 1 year |
| Material | 316 L food grade stainless steel |
| Dimensions | 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC102 or IFC202 |
| Approvals | CE Approved for carriage on Delta® Mainline Flights |
Temperature
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ± 0.5 °C (0 °C to 50 °C) ± 1.0 °C (50.1 °C to 80 °C) ± 2.0 °C (-40.0 °C to -0.1 °C |
