Description

The NanoTemp125 is a miniature high-temperature data logger. Includes ISO17025 accredited calibration certificate and two replacement batteries.

Key Features:

• Compact Size
• Submersible
• Available in Various Probe Lengths
• Measures Temperatures from -20 °C to +125 °C

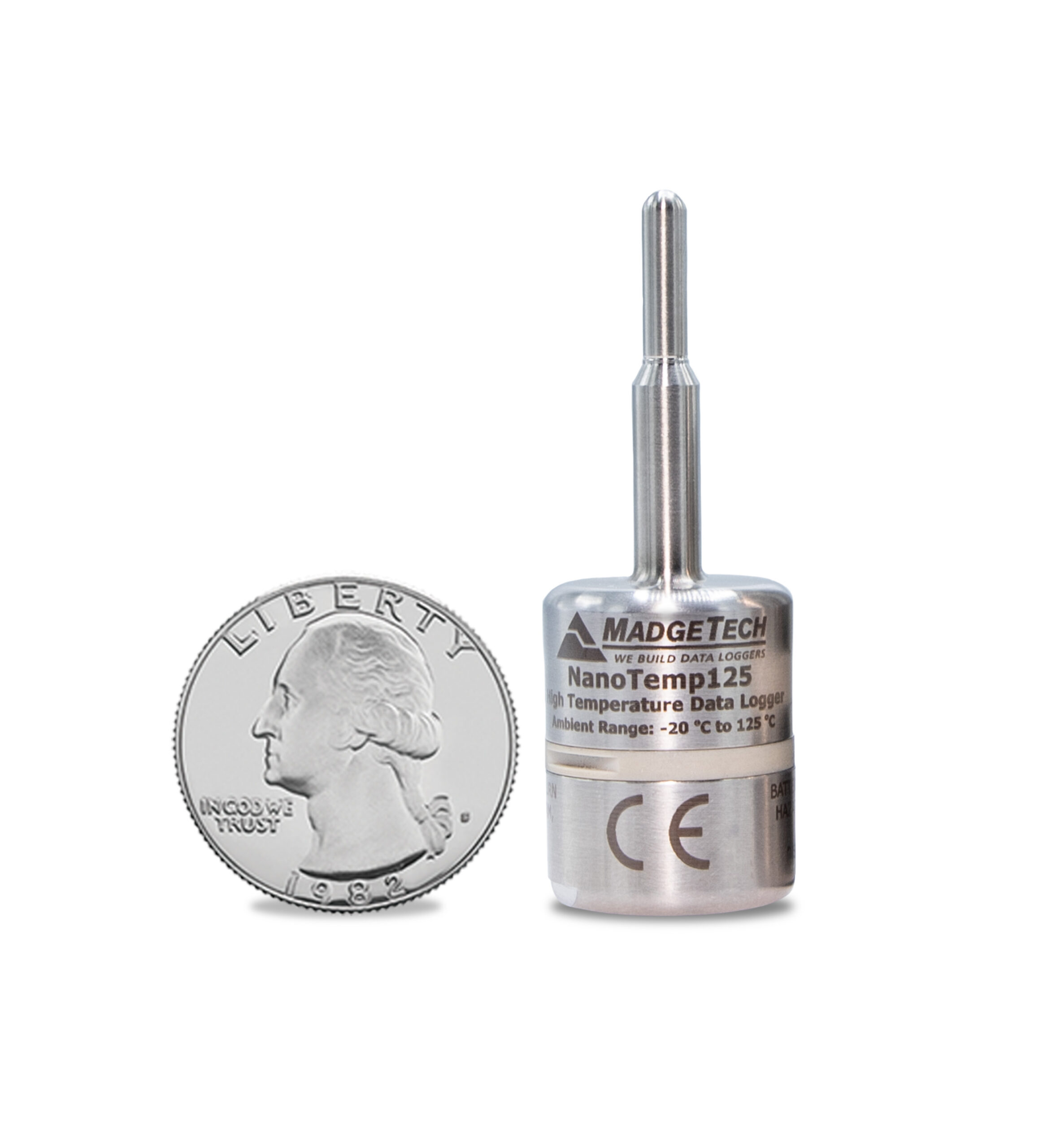

The NanoTemp125 is the newest innovation in MadgeTech’s high-temperature data logging lineup, offering the same trusted performance as the HiTemp140 series in a significantly smaller design. Specifically crafted for space-constrained applications, this submersible, stainless steel data logger is ideal for industries requiring reliable, high-precision temperature monitoring. From autoclave validations to pharmaceutical manufacturing and food processing, the NanoTemp125 is built to thrive in the most demanding environments.

The NanoTemp125 operates within a temperature range of -20 °C to +125 °C (-4 °F to +257 °F), providing exceptional versatility for both high-temperature and cryogenic applications. Its compact size allows it to fit effortlessly into tight spaces, making it perfect for autoclave chambers, small vials, and other challenging environments. Despite its size, the NanoTemp125 delivers an impressive accuracy of ±0.1 °C (±0.18 °F), ensuring the precision required for regulatory compliance and quality assurance.

Equipped with the capacity to store more than 32,000 time- and date-stamped readings, the NanoTemp125 can monitor processes over extended periods without interruption. Its rugged, waterproof design ensures durability and reliability in wet and dry applications alike, making it a valuable tool for diverse monitoring needs.

The NanoTemp125 is fully compatible with MadgeTech 4 Data Logger Software, enabling easy setup, seamless data management, and detailed analysis. Whether conducting autoclave validations or monitoring temperature in other critical processes, the NanoTemp125 combines compact convenience with trusted performance to meet your most challenging demands.

MadgeTech NanoTemp125 — Specification Overview

Here are the key technical specifications for the NanoTemp125 miniature high-temperature data logger:

Temperature & Sensor

• Sensor type: Internal RTD (100 Ω platinum) (madgetech.com)
• Probe measurement range: –200 °C to +260 °C (-328 °F to +500 °F) (Pacific Sensor Technologies)
• Operating (body) temperature range: –20 °C to +125 °C (-4 °F to +257 °F) (madgetech.com)
• Temperature resolution: 0.01 °C (0.02 °F) (krone.co.jp)
• Calibrated accuracy:
  • ±0.1 °C (±0.18 °F) for 20 °C to +125 °C (68 °F to 257 °F) (Pacific Sensor Technologies)
  • ±0.3 °C (±0.54 °F) for –20 °C to +19.99 °C (-4 °F to +67.98 °F) (tessol.com)

Memory & Logging

• Memory capacity: 32,512 readings (madgetech.com)
• Reading rate: from 1 reading every 1 second up to 1 reading every 24 hours (madgetech.com)
• Trigger settings: High/Low limit triggers, bi-level start/stop triggers supported (Pacific Sensor Technologies)
• Wrap around: Yes (madgetech.com)

Physical / Mechanical

• Body dimensions: 22.9 mm height × 17.8 mm diameter (krone.co.jp)
• Probe diameter: typically 3.2 mm (4.8 mm trans. dia) for standard models (krone.co.jp)
• Probe lengths: multiple options, e.g.:
  • NanoTemp125-1: 25.4 mm (1.0 in) length (krone.co.jp)
  • NanoTemp125-2: 50.8 mm length (mksci.com)
  • NanoTemp125-5 (or 5.25 in): 133.35 mm length (ITM)
• Weight approx: 18–20 g depending on probe length/model (Pacific Sensor Technologies)
• Material: 316 stainless steel body, PEEK components (krone.co.jp)
• Ingress protection: IP68 (fully submersible) (madgetech.com)

Power & Interface

• Battery type: Two 3 V high-temperature lithium coin cells, user-replaceable (madgetech.com)
• Typical battery life: ~1 year (assuming 1-minute read interval at 25 °C) (mksci.com)
• Time accuracy: ±1 minute/month (20 °C to 30 °C) in stand-alone mode (madgetech.com)
• Computer interface: Requires USB docking station (e.g., IFC400 or IFC406) with adapter; baud rate 125,000 (Pacific Sensor Technologies)
• Software compatibility: Works with MadgeTech 4 Standard/Secure software versions noted in datasheet (madgetech.com)

Environmental / Other

• Operating environment: –20 °C to +125 °C, 0 % RH to 100 % RH, 0.002 PSIA to 100 PSIA (Pacific Sensor Technologies)
• Probes and variants for different applications (for example, the “CF” version for canning/sterilization) (madgetech.com)
