Description

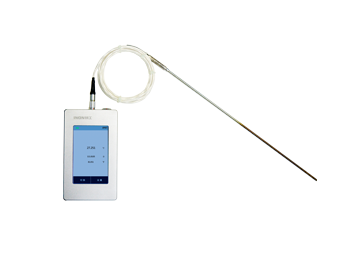

Precision platinum resistance thermometer M1P1
Main features :
All technical indicators are close to those of second-class standard platinum resistance thermometers
● System accuracy: ±0.025°C
● High resolution, full range: 0.001C
● Full touch screen operation
The metal protection tube can ensure that the probe will not be contaminated when used in a cheap metal environment
| model | M1P1 |
| Measuring range | -200℃ to 500℃ |
| Accuracy | ±0.025°C |
| Short-term stability | ±0.01℃/24 hours (daily drift does not exceed ±0.01℃) |
| resolution | 0.001℃ |
| Temperature coefficient | α=0.00385 |
| Wire system | 4-wire |
| Temperature probe | |
| Thermal cycling characteristics | Better than ±0.01°C |
| Thermal hysteresis effect | ≤0.01°C |
| Self-heating effect | Meet the second-class standard platinum resistance thermometer indicators |
| Response time | T63=9s |
| Head packaging material | High temperature alloy |
| Conductor outer material | Teflon |
| Wire operating temperature | -60℃ to 180℃ |
| Head size (diameter x length) | Φ3.1×300mm |
| Wire size (diameter x length) | Φ3.5×2500mm |
| Tail terminal | Anti-drop aviation universal plug |
| Origin of temperature sensing element | China |
| Notice | Do not vibrate |
| thermometer | |
| Anti-drop aviation probe port | 1 |
| Anti-slip aviation universal port | 1 |
| communication | Can communicate with the research and development verification instrument |

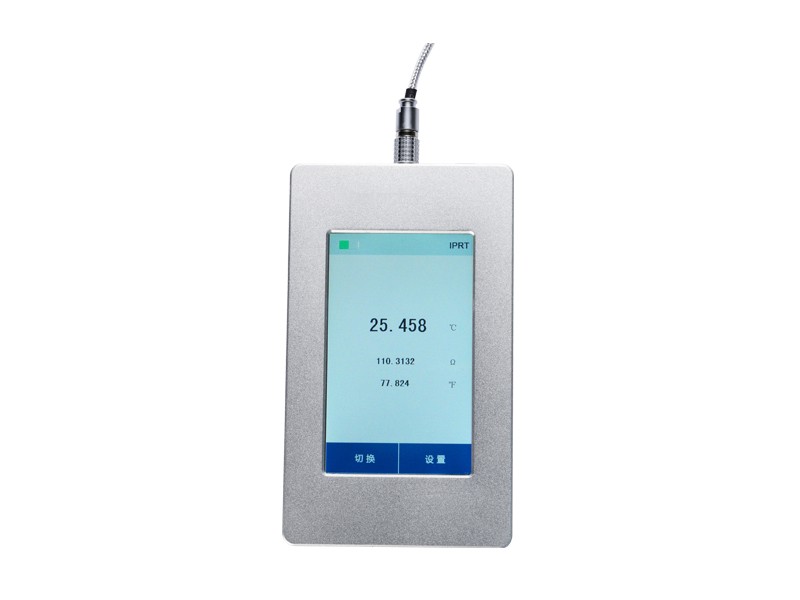

| Display size | 4.0 inches |
| Display resolution | 480×800 |
| touchscreen | 4-wire resistance |
| Input voltage | 12VDC |
| Maximum power consumption | 2.4W |
| Operating temperature | 15℃ to 35℃ |
| Operating humidity | 0%RH to 90%RH |
| Protection level | IP50 |
| Dimensions (width × height × depth) | 76.8×136.2×36.8mm |
| Shell material | aluminum alloy |
| quality | 421g |
| Battery | Rechargeable lithium battery |
| Battery disassembly and assembly | Cannot be disassembled |
| Battery life | A full charge can work for about 8 hours |
| Notice | Do not use in harsh environments |
