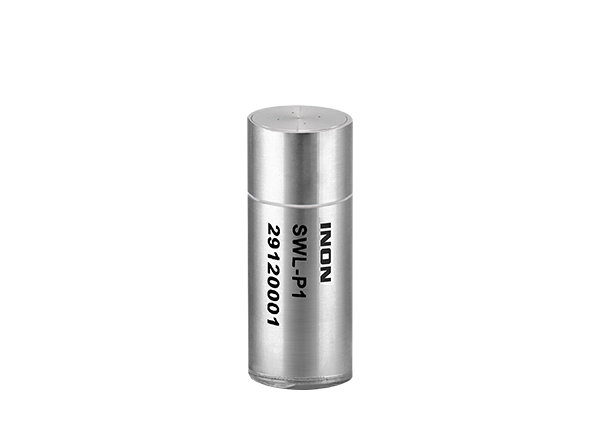

Small Wireless Recorder-Pressure

Product Overview

This compact pressure recorder utilizes the world’s most advanced electronic technology and structural design, resulting in improved performance while significantly reducing size. Its world-class performance in high-temperature resistance, waterproofness, pressure resistance, and low power consumption makes it a reliable and accurate assistant.



Applicable to

● Steam sterilizer

● Water bath sterilizer

● Freeze dryer

● Constant temperature and humidity chamber

Description

Small Wireless Recorder-Pressure

Key Features

● Small size

● 6 million recording times, ultra-long battery life, no need to replace batteries for several years

● Professionally withstand the harsh environment of high temperature and high pressure water bath

model SWL-P1
pressure sensor
Number of channels 1
Measuring range 0.1kPa to 500kPa ABS
Accuracy ±0.25%FS
resolution 0.01kPa
Location built-in
Recorder
Operating temperature -60°C to 150°C
Storage capacity 32,000 data/channel
Minimum recording interval 1s
Maximum recording interval 999h
Maximum startup delay 999h
Dimensions (diameter x length) Φ20×50mm
Shell material 316L stainless steel, PEEK
quality 54g
Pressure
0.1kPa to 500kPa ABS
Protection level Higher than IPX8, resistant to high temperature pressure steam and water bath
Battery 3.6V high temperature battery
Battery Replacement Research and Engineering
Battery life 3 million records/battery, 3 million/400 records verification = 7500 verifications
More than 6 years/battery life
1 year <1%/capacity attenuation
