Description

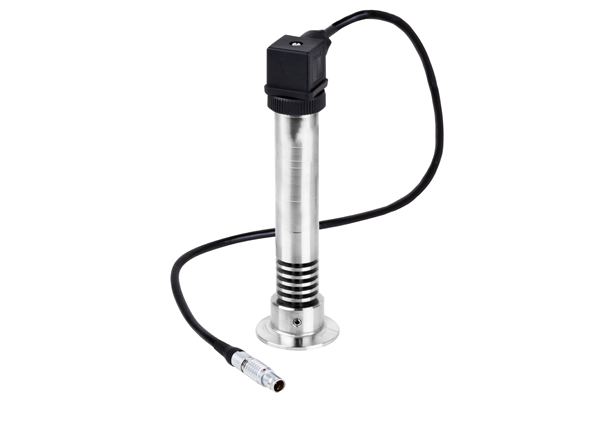

Digital Pressure Sensor DPS
Main features
● High temperature resistance: 140℃
● Fully digital signal transmission, accuracy is not affected by connector plugging and unplugging
| model | DPS-5 high temperature type |
| Pressure indicators | |
| Number of channels: | 1 |
| Measuring range: | 0.1kPa to 500kPa ABS |
| Accuracy: | ±0.25%FS (1.25kpa/12.5mbar) |
| Resolution: | 0.01kPa |
| other | |
| Head installation method: | Φ50.5mm chuck |
| Head shell material: | 316L stainless steel |
| Head operating temperature: | -20℃ to 140℃ |
| Head: | 120mm |
| Conductor outer material: | PU |
| Wire diameter: | Φ6mm |
| Tail terminal: | Anti-drop aviation universal plug |
| Total length: | 5m |
| Sensor core origin: | Germany |
| Notice: | Do not touch the pressure measuring part on the chuck surface to avoid affecting the accuracy or damaging it. |
| Ordering Information: | DPS-5 5m |
