Description

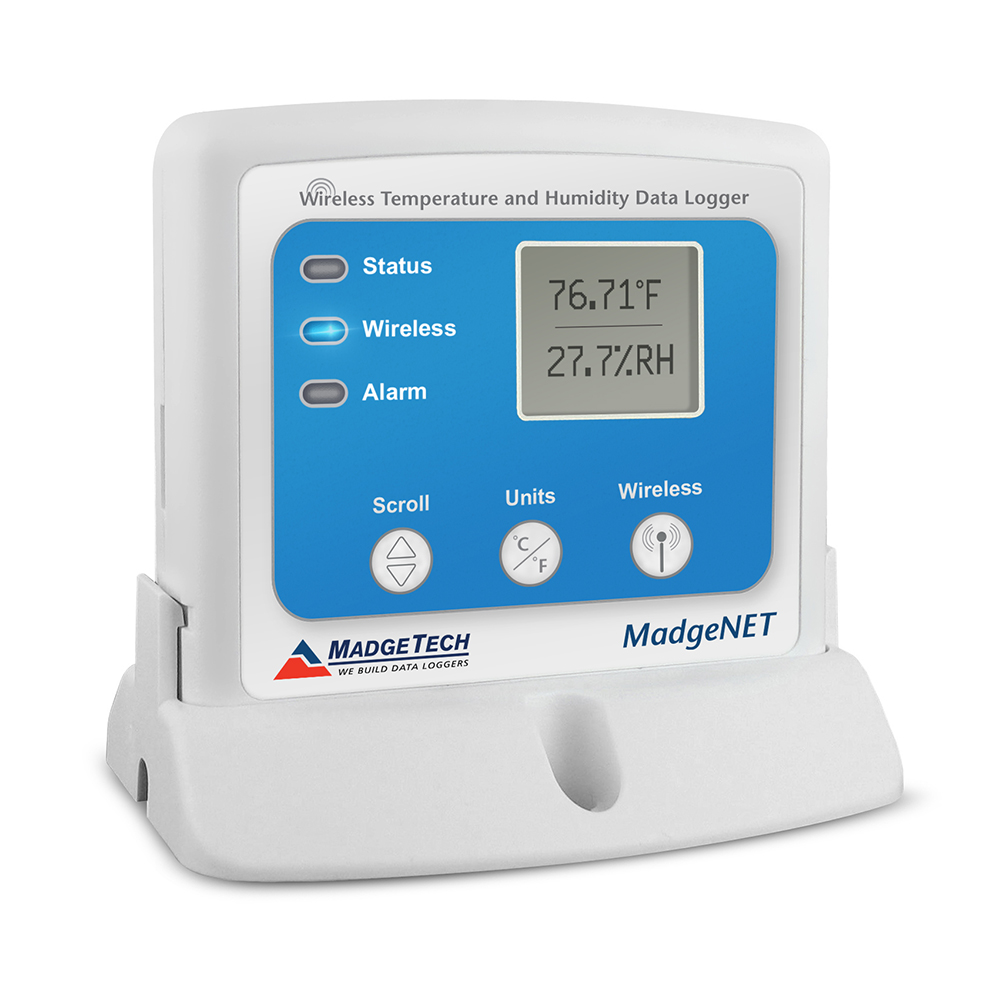

RFRHTemp2000A Wireless Temperature & Humidity Data Logger

The RFRHTemp2000A is a wireless temperature and humidity data logger that includes an
ISO17025-accredited calibration certificate.

Key Features

• Digital Display
• Continuous Monitoring
• Configurable Alarms & Notifications

Designed with external humidity and RTD-based temperature sensors, the RFRHTemp2000A provides a fast response time for both parameters.
Its LCD screen gives instant access to current readings, minimum, maximum, and average statistics.
With user-programmable alarms, users can receive email or text alerts when thresholds are breached, allowing immediate action.

The RFRHTemp2000A is compatible with the latest MadgeTech 4 Software for simple data management and supports
MadgeTech Cloud Services for remote monitoring on any internet-enabled device.

Note: RFC wireless interface required.

Specifications

General

Specification	Details
Memory	16,128 readings (all channels enabled)
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	3 years typical at a 1 minute reading rate
Material	ABS plastic
Dimensions	3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm)
IP Rating	IP22
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Approved Countries	Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

Temperature

Specification	Details
Sensor Type	Resistance Temperature Detector (RTD)
Range	-20 °C to +60 °C (-4 °F to +140 °F)
Resolution	0.01 °C (0.018 °F)
Calibrated Accuracy	±0.5 °C (0 °C to 55 °C)

Humidity

Specification	Details
Sensor Type	Relative Humidity Sensor
Range	0 %RH to 95 %RH
Resolution	0.1 %RH
Calibrated Accuracy	±3.0 %RH
Specified Accuracy Range	25 %RH to 75 %RH; +20 °C to +40 °C Hysteresis Error: 1 % typical, 3 % maximum

Wireless

Specification	Details
RF Carrier Frequency	2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully bi-directional communication
RF Baud Rate	250,000
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical Outdoors Line of Sight	Up to 2,000 ft
Typical Indoors Line of Sight	Up to 500 ft
