Description
The RFTCTemp2000A is a wireless thermocouple-based temperature data logger. Includes ISO 17025 accredited calibration certificate.
Key Features:
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications

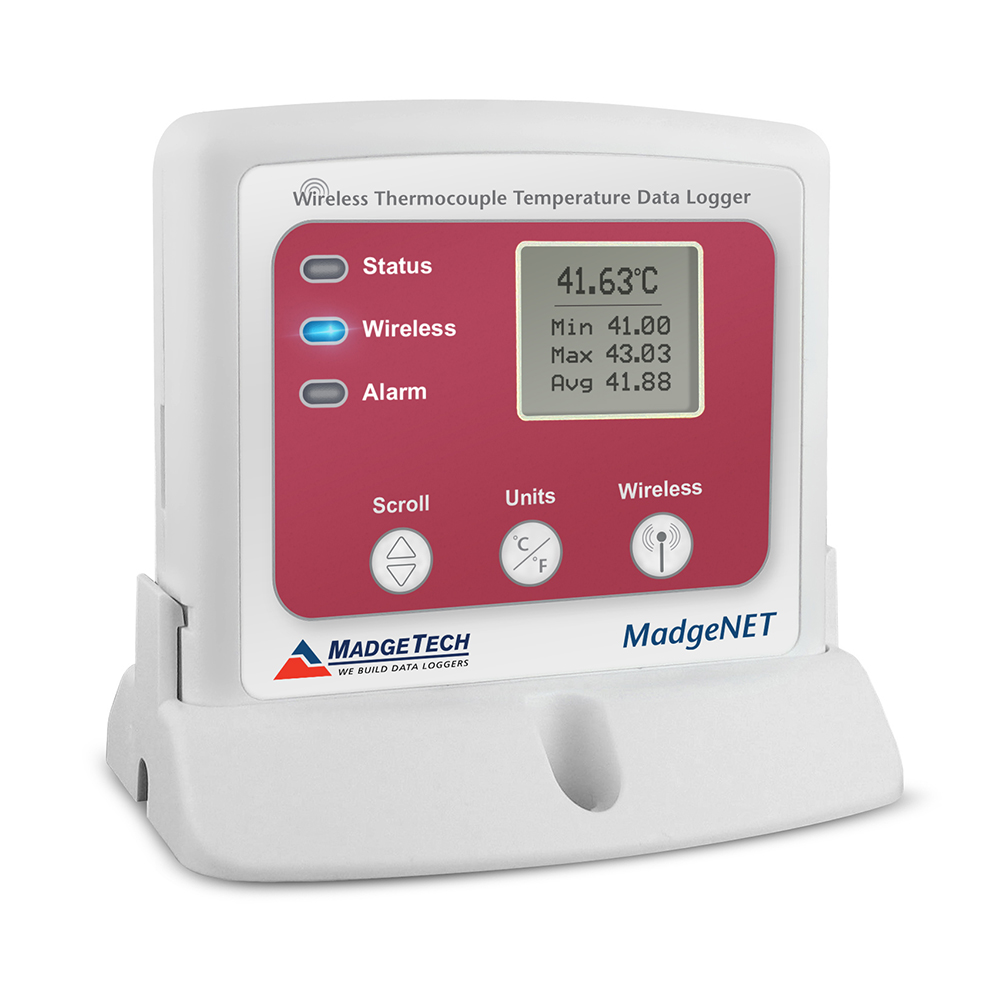

The RFTCTemp2000A is a wireless thermocouple-based temperature data logger (probe sold separately). Ideal for monitoring ambient and remote temperature, the RFTCTemp2000A accepts a variety of thermocouples and is designed with a built-in temperature sensor for cold junction compensation.
This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFTCTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.The RFTCTemp2000A is available with mini-plug (RFTCTemp2000A-MP) or terminal block (RFTCTemp2000A-TB) connector.
The RFTCTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFTCTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
Specifications
General
| Memory | 16,128 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 3 years typical at a 1 minute reading rate |
| Material | ABS plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) – Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
Temperature
| External Temperature Sensor | Thermocouple types: J, K, T, E, R, S, B, N |
| External Temperature Range | -210 °C to +1300 °C (-410 °F to +2372 °F) (Probe Dependent) |
| External Temperature Resolution | 0.1 °C (0.18 °F) (Probe Dependent) |
| External Temperature Calibrated Accuracy | ±0.5 °C (± 0.9 °F) (Probe Dependent) |
| Internal Temperature Sensor | Internal Semiconductor |
Wireless
| RF Carrier Frequency | 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
